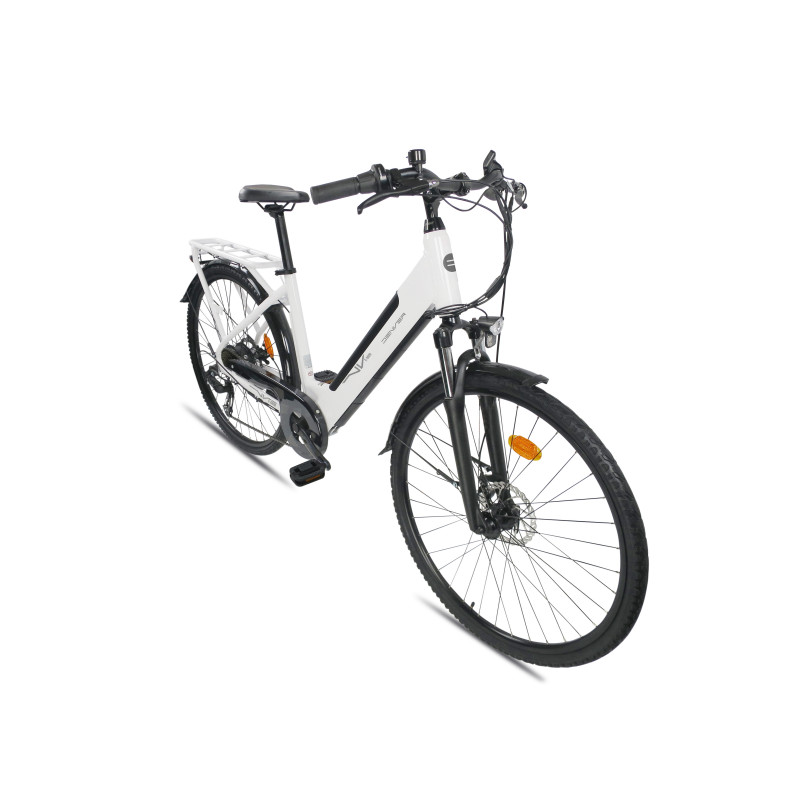

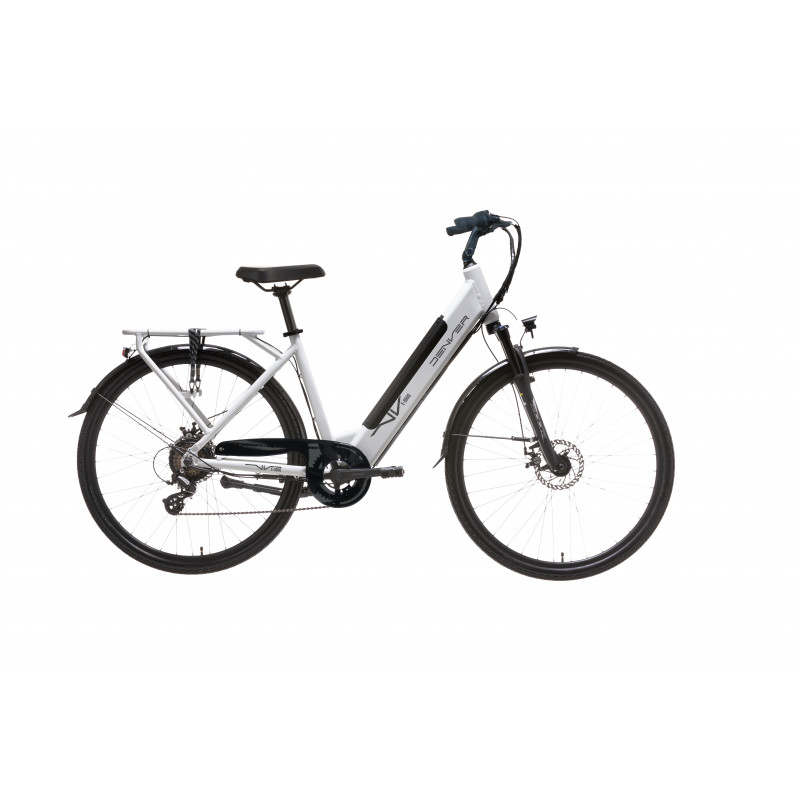

Electric Bicycle E8600, White

General

• Model: E8600
• Code: 23080 | EAN: 8015244800417
• Net Weight: 26 kg | Gross Weight: 32 kg
• Color: White
• Dimensions (H × W × L): 114 × 60 × 188 cm
• Owner Manual: Yes
• Packing: Carton box 99%, Trapezoidal 1140 × 225/160 × 1910 mm

Electrical System

• Motor: Bafang 250W rear wheel
• Battery: Integrated 36V 12.8Ah (468Wh, Lishen cells)
• Display: Bafang LCD, 5-level assistance
• Lights: Front + rear powered by main battery

Battery Performance

• Autonomy: 70–80 km (standard conditions: 25°C, 75 kg, 20 km/h, no wind)

Construction

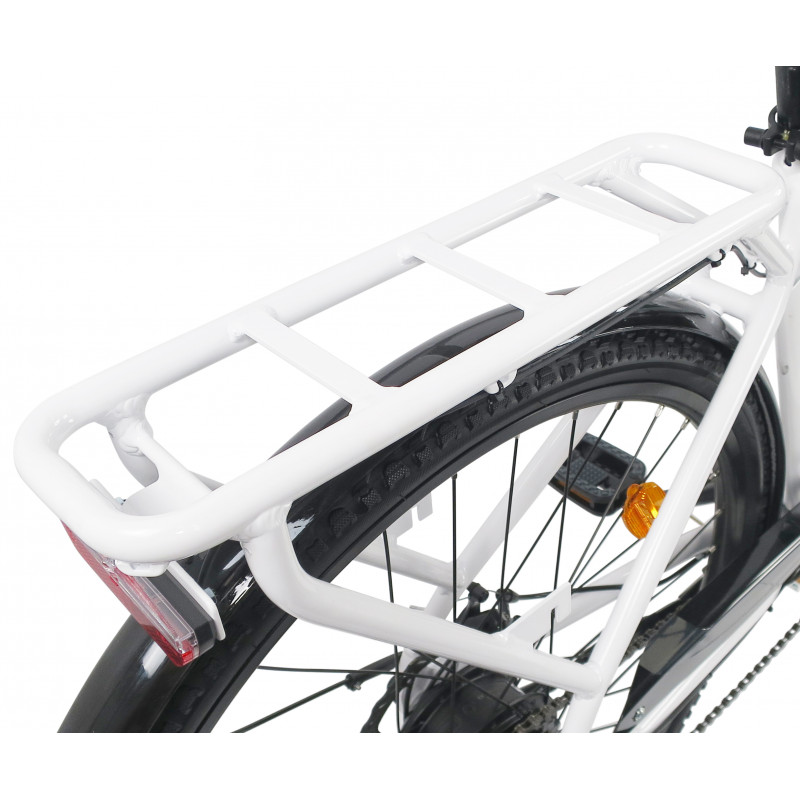

• Frame: 28" Aluminium with integrated carrier

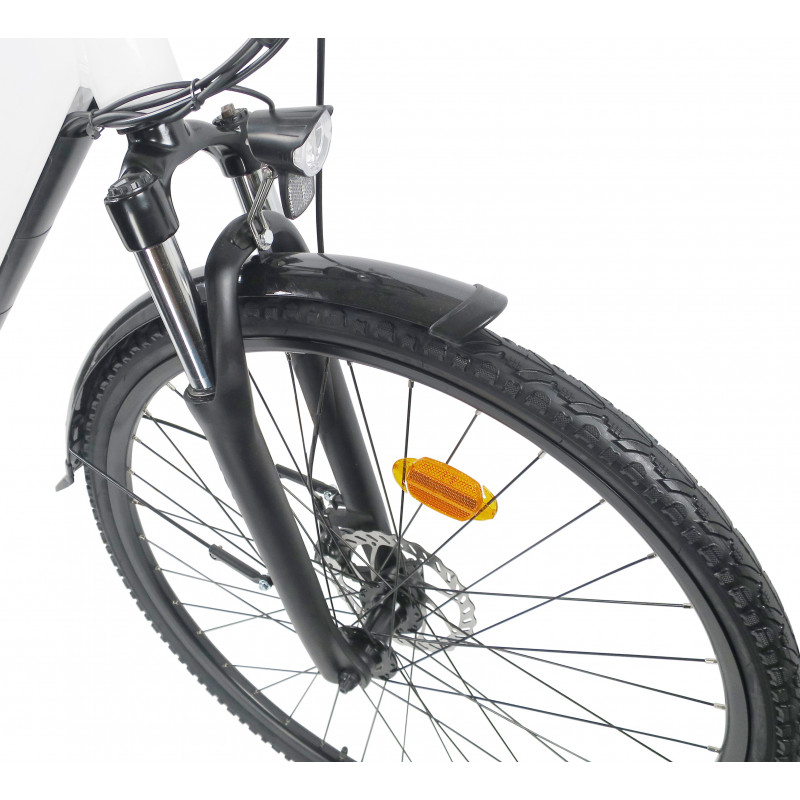

• Fork: 28" Alloy suspension, disk mount
• Headset: Semi-integrated threaded

Drivetrain & Brakes

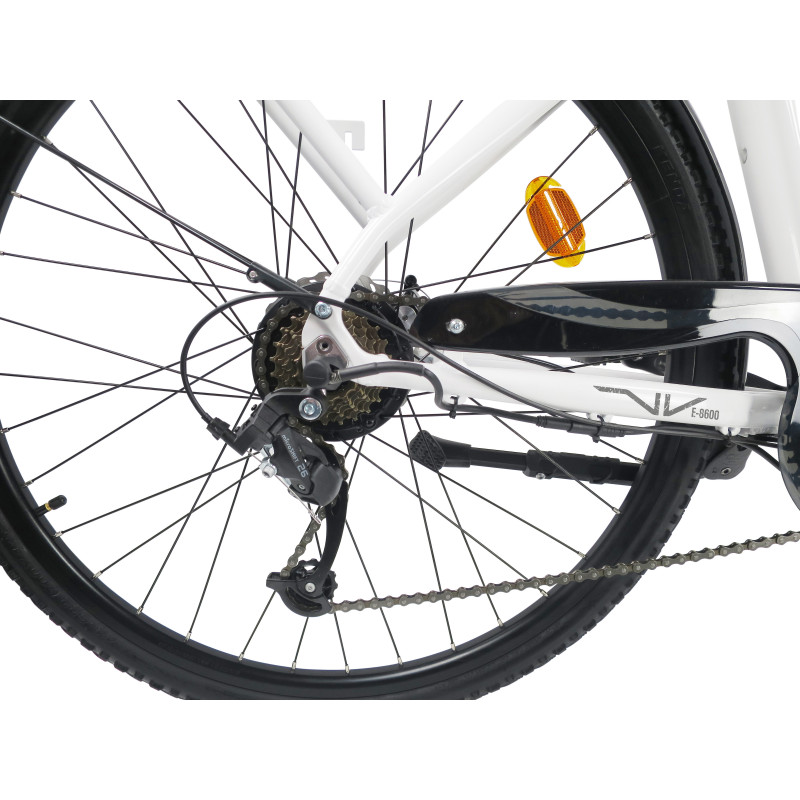

• Rear Derailleur: Microshift RD-M26L
• Shifters: Shimano Revo 7-speed
• Freewheel: 7-speed
• Chainwheel: 42 × 170 alloy cranks
• Brakes: Mechanical disk 160 mm rotor
• Brake Levers: Aluminium with “Power Off”
• Pedals: City anti-slip with reflectors

Wheels & Tyres

• Rims: 28" aluminium black double-wall
• Hubs: Front aluminium QR disk, rear motor
• Spokes: 13G
• Tyres: Kenda 700 × 42
• Tubes: AV

Cockpit

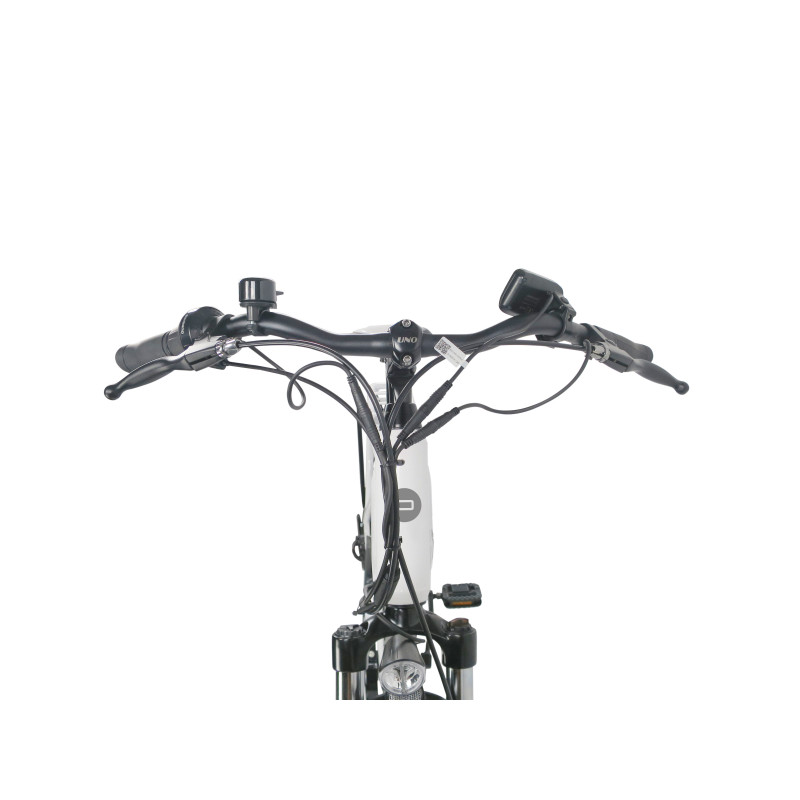

• Handlebar: Alloy black 600 mm
• Stem: Alloy adjustable black
• Grips: Ergonomic

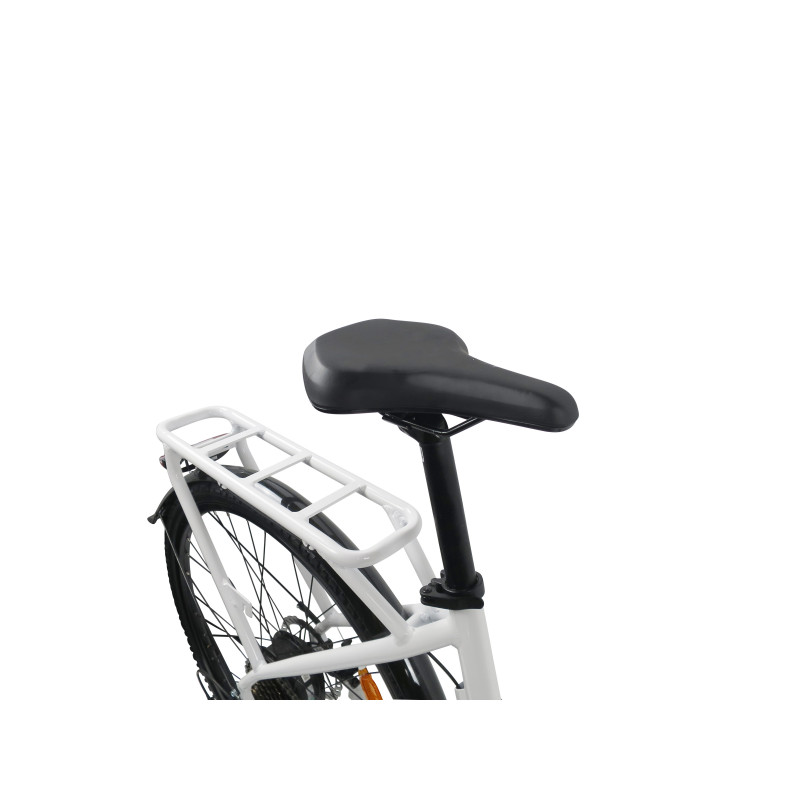

• Seat: City
• Seat Post: Alloy black 30.4 × 350 mm
• Seat Clamp: Quick release aluminium

Accessories

• Reflectors: 1 per wheel

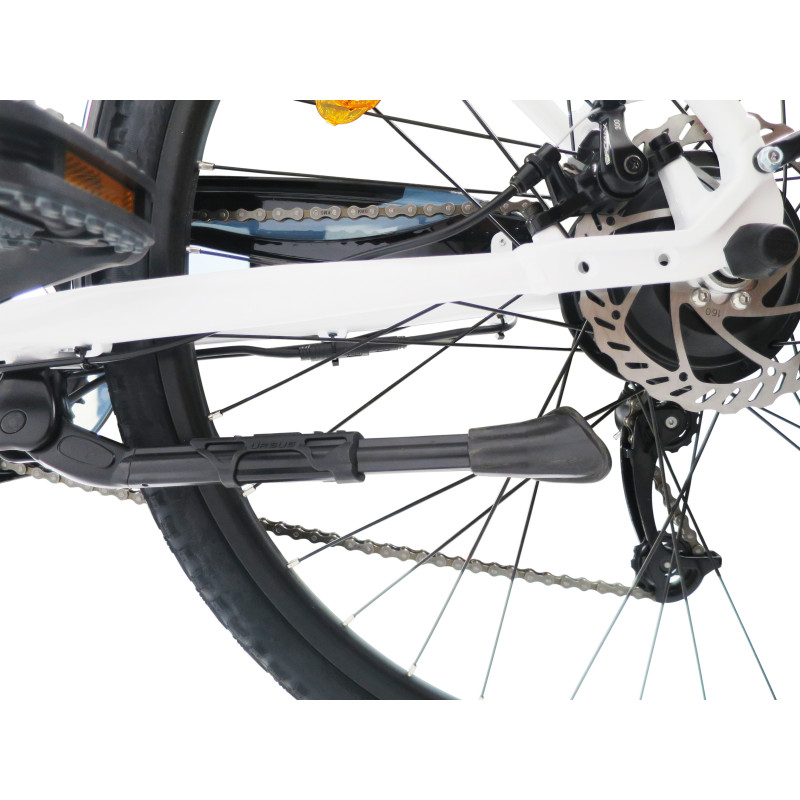

• Kickstand: Alloy adjustable
